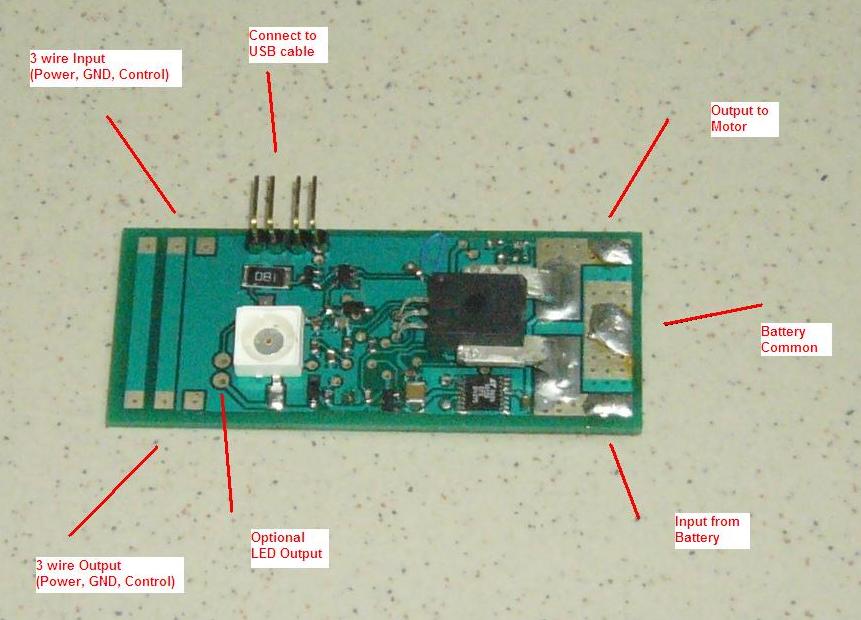

Lithium Battery Current/Voltage Logger is used in hobbyist airplane, helicopter and boat to monitor Lithium battery usage and depletion. Lithium battery cannot be fully drained to prevent damage to battery. The logger helps to log current usage and voltage level and emit warning to notify user that battery pack has reached limit. The logger supports:-

a. Lithium battery voltage from 5V up to 80V and measure current up to 200A
b. Logger will turn on LED warning if voltage falls below a pre-programmed value
c. Logger will turn on LED warning if continuous current exceed a pre-programmed value
d. Logger will turn on LED warning if burst current exceed a pre-programmed value
e. Logger will turn on LED warning if battery capacity falls below a pre-programmed value
> f. Logger can cut-off supply of Lithium battery if capacity falls below critical value pre-programmed by user to prevent battery damage.

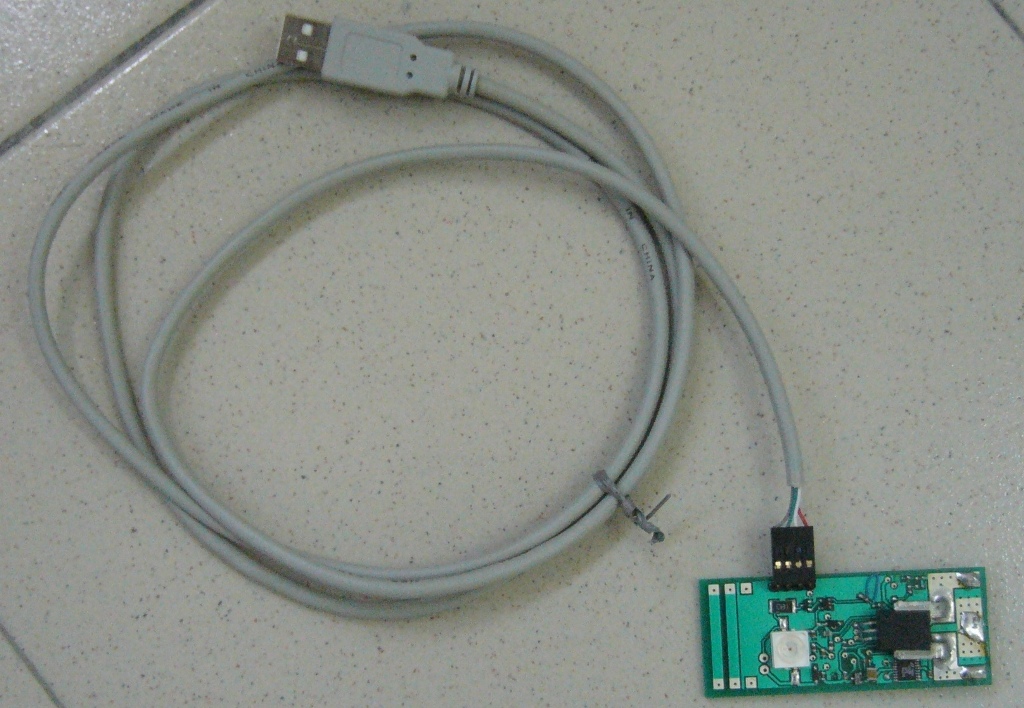

g. The logger can be programmed by user through a PC with USB port.
> h. LED warning blink sequence can be configured by user through a PC with USB port.
i. Logger will be able to do firmware update through USB cable connected to a PC
